Inhouse Facilities
Our modern shop floor is equipped to handle demanding industrial and commercial requirements with speed and accuracy. Our vertically integrated facility features
TOOLROOM MACHINARY
VMC Machine
Engineered for heavy-duty stock removal and large-component machining, the Cosmos CVM1350 and BFW CHAKRA 1000 VMC delivers exceptional rigidity, power, and stability. Featuring a wide-column structural architecture and a high-load table capacity, this machine is built to handle complex, demanding workloads without compromising on surface finish accuracy. It is an optimal asset for heavy manufacturing, large tooling, and intricate die and mold production.
Stamping Machinary
Wire-Cut EDM
_edited.png)
X2
Known for its rigid T-base structure, high-precision linear guide ways, and advanced Japanese AC servo drives, the Electronica Ultima machine represents the pinnacle of reliability and precision in tool-room machining.
Built for versatility and cost-effective production, the Ratnaparkhi Wire-Cut EDM features advanced multi-cut facilities, reusable Molybdenum wire technology, and closed-loop linear scale feedback systems.
Sinker EDM

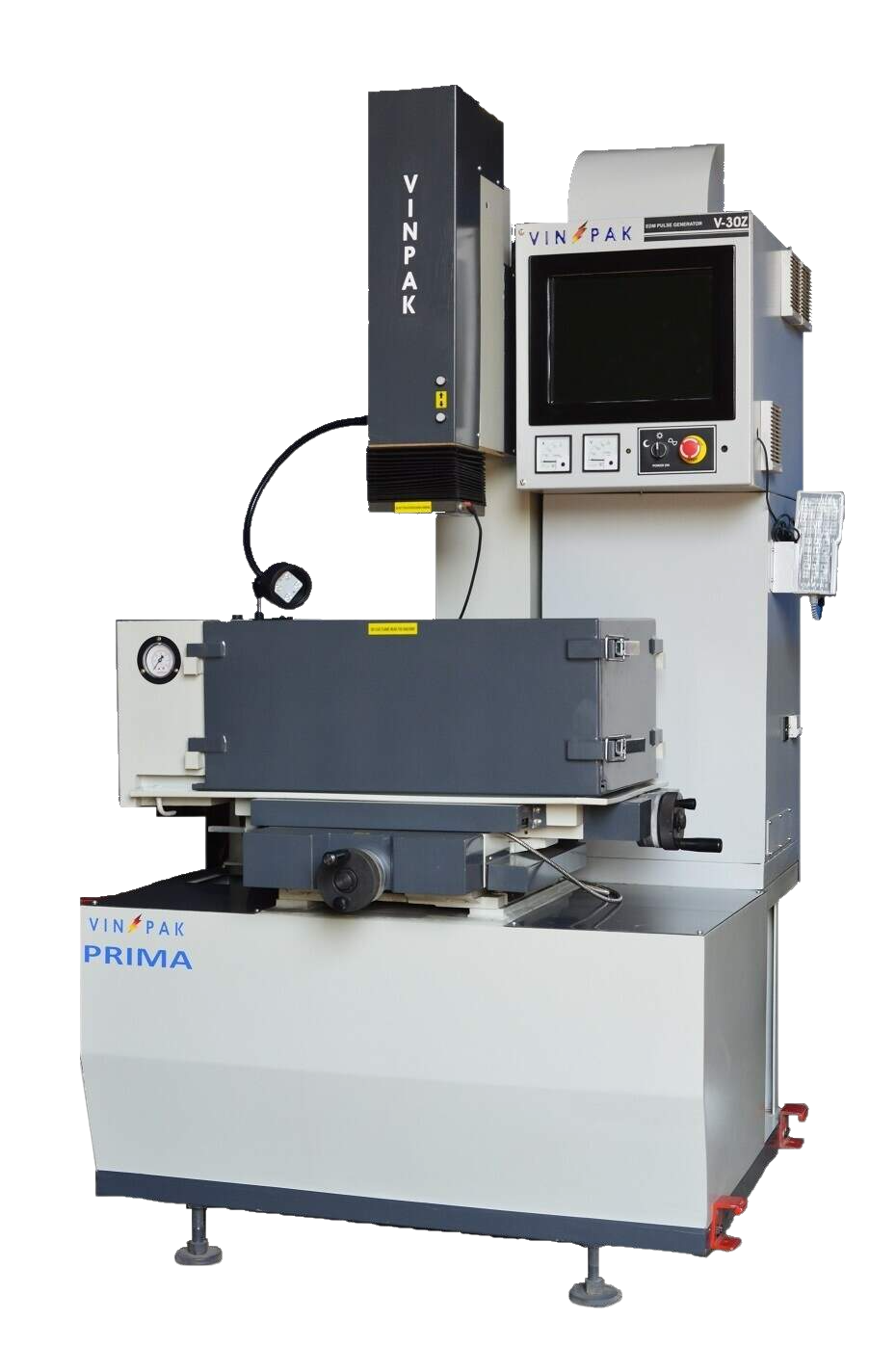

Vinpak Prima ZNC Sinker EDM is an advanced electrical discharge machining solution built to handle intricate die, mold, and complex cavity components. Combining robust structural rigidity with intelligent Z-axis numerical control, it delivers exceptional surface finishes and tight dimensional tolerances for demanding tool and die applications.
Surface Grinding Machines
Our 2 Meter × 500 mm Rotary Grinding Machine is a robust, industrial-grade grinding solution designed for precision surface grinding of large and heavy components. Manufactured in Punjab, India, the machine combines rugged construction, reliable performance, and practical engineering to meet the demanding requirements of general engineering, fabrication, automotive, tool-room, and heavy manufacturing industries.
.png)
X2
With a combination of large-capacity rotary grinding, smaller grinding machines, and a Jones & Shipman precision grinding machine, our facility can handle a broad range of grinding requirements—from large industrial components to smaller precision tooling and engineering parts.
Vision Measuring machine
_edited.png)
ATQ Metro VMM delivers high-precision, non-contact dimensional measurement with Full HD vision, granite construction, high-resolution linear encoders, precision guides, advanced LED illumination, automatic edge detection and measurement accuracy of 2.5 + L/100 µm. It also includes industrial best probing system (RENISHAW PROBE ) to detect surfaces and curves of component. It provides reliable inspection capability for precision engineering, tooling, stamping and quality-control applications.
CNC Turning
Engineered for high productivity and unyielding accuracy, the Ace Micromatic J 300 is a rugged, compact 2-axis CNC lathe designed to meet the rigorous demands of modern job shops and ancillary manufacturing. Combining cost-effectiveness with high-precision output, it is the ideal solution for precision-turned components and batch production
QUALITY CONTROL
CAM / CAD Softwares
From CAD Design to Verified CNC Toolpath — One Integrated Toolroom Workflow.
2013
.png)
We combine modern CNC machinery with a licensed CAD/CAM software ecosystem comprising AutoCAD, BricsCAD, Autodesk PowerShape and Autodesk PowerMill. This gives our toolroom an integrated capability for 2D drafting, 3D tool design, complex geometry development, CAM programming, toolpath optimization and virtual machining verification. The result is a controlled digital-to-manufacturing workflow designed to improve accuracy, repeatability, machining efficiency and consistency in the production of precision dies, punches, moulds, fixtures and engineering components.
Measuring Instruments
“Precision Measurement. Controlled Manufacturing. Consistent Quality.”
Our toolroom and quality department are equipped with a comprehensive range of Mitutoyo precision measuring instruments, supported by advanced vision measurement technology. This enables accurate inspection of dimensions, profiles, heights, depths, bores, diameters, thicknesses, runout and other critical features throughout the manufacturing process. By maintaining stringent dimensional control from tool development and machining through to final inspection, we ensure consistency, repeatability and reliable quality across our manufactured components.
AMADA TP-60

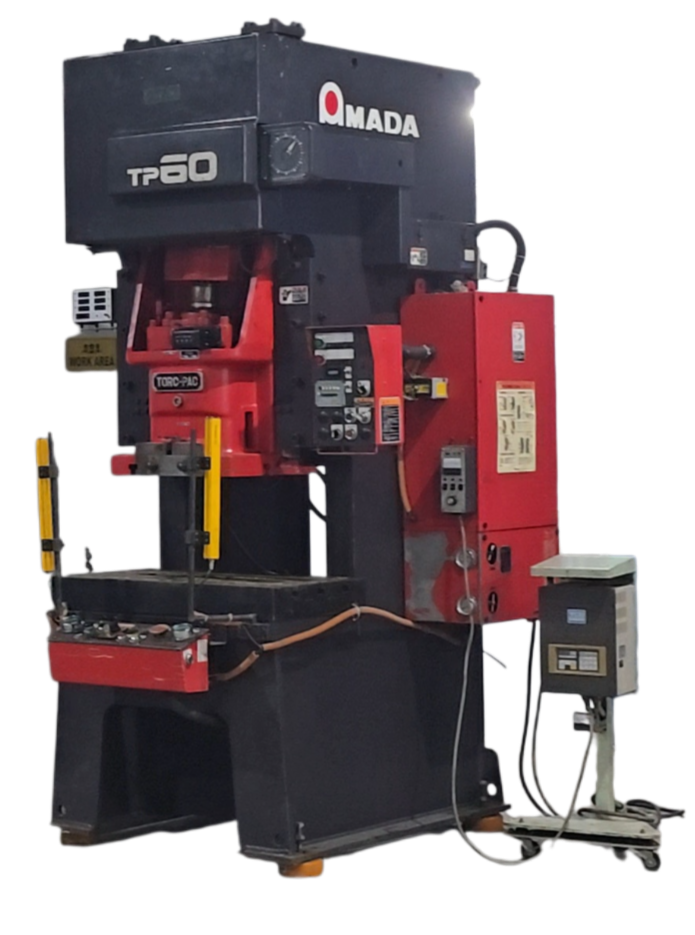

The Amada TP-60C power press, manufactured in Kanagawa, Japan, is a heavy-duty 60-ton capacity stamping machine featuring a stroke rate of 150 SPM, a 90 mm stroke length, a 275 mm die height, a 70 mm slide adjustment, 500 mm × 400 mm slide dimensions, and 900 mm × 550 mm bolster dimensions. It operates on a 3-phase, 200V, 60 Hz power supply with a 5.5 kW main motor and a compressed air pressure of 5.0 kgf/cm², while maintaining strict safety and monitoring parameters with an emergency stop time of 190 ms, a maximum stop time of 550 ms, and an overrun monitor setting position of 25°.
Conventional Power Presses

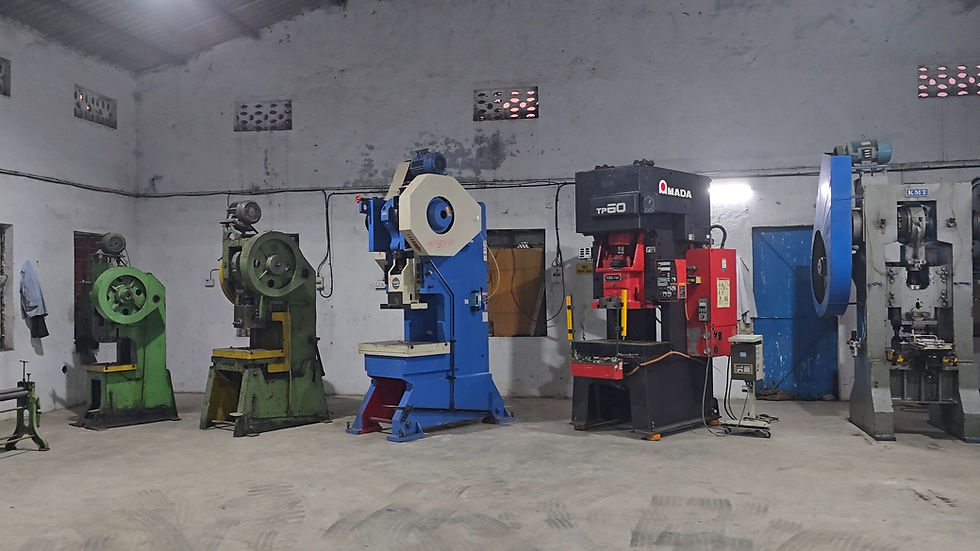

We deliver robust, high-performance metal forming solutions tailored to the rigorous demands of modern manufacturing, featuring a comprehensive range of conventional C-type mechanical power presses spanning from 10 to 100 tons alongside a heavy-duty 150-ton H-type press engineered for high-precision progressive stamping and complex industrial applications. Built with rigid, high-grade frames to minimize deflection and maximize tool life, our dependable machines combine superior structural integrity, operator safety, and exceptional versatility to keep your production lines running with maximum productivity and endurance.
Decoilers Straightners and Feeders
At Unitec Enterprises, our advanced sheet metal stamping facility is equipped for high-efficiency, precision manufacturing ranging from light-to-medium component production to heavy-duty industrial pressing. Our robust machinery lineup features five conventional C-type mechanical power presses (spanning 10 to 100 tons) for versatile blanking and forming, a high-capacity 150-ton H-type mechanical press for heavy-duty structural work, and a high-speed Amada TP-60 pneumatic press for precision operations. To ensure seamless, continuous-feed production and maximum throughput, our presses are complemented by a fully integrated automated coil-handling system comprising two heavy-duty decoilers, two precision stock sheet straighteners, and two automated pneumatic feeders. Backed by rigid machine construction and streamlined material flow, we deliver exceptional stamping accuracy, extended tool life, and reliable performance across all your custom metal component requirements.
